DRA800H Denon Replacement Parts

Manufacturer

Model Number
DRA800H

Description
2.1 Channel Stereo Network Receiver

Denon
963111010230S
Line Filter, 27Mh
9.95 - Click for details

Parts List

Category	Part Number	Description	Demand	Availability
Screw	943646100790S	Denon 2P, Screw Spk(rd/bk,gold,transparence) Schematic Location: JK501		No
Inlet	943641500540S	Denon Ac Inlet Wire Ass'y (2P,110mm) Schematic Location: P15		Ships in 6 days 5.95
Antenna	963116100930S	Denon Ant(2.4g/5g External+cable I-pex Gray 300Mm) Schematic Location: M17	Y	In Stock In stock 22.95
Antenna	963116100070S	Denon Ant, Am Loop(9.5uh/5t) Schematic Location: 5-6	Y	In Stock In stock 8.95
	42141010601AD	Denon Badge , Denon Schematic Location: F7		Ships in 6 days 10.95
	42141010602AD	Denon Badge , Denon Schematic Location: F7		Ships in 6 days 8.95
Bush	963419100910S	Denon Bush , Wifi Antenna Schematic Location: M15	Y	In Stock In stock 5.95
Knob, Dial, Button	943411104150S	Denon Button , Function Schematic Location: F10	Y	Ships in 6 days 6.95
Knob, Dial, Button	943411101760D-99	Denon Button , Power Schematic Location: F8		Ships in 6 days 7.95
Knob, Dial, Button	943411101750D	Denon Button , Power Schematic Location: F8	Y	Ships in 6 days 5.95
Cover,Cap	943403101580S	Denon Cabinet , Top Schematic Location: M11	Y	In Stock In stock 44.95
	943132100820S	Denon Cap, Ceramic(x1/y1, 0.01Uf, Ac250v) Schematic Location: C6001		Ships in 6 days 5.95
	943132100640S	Denon Cap, Chip(3216, 1000Pf, Dc1kv, Murata Grm31) Schematic Location: C6011		Ships in 6 days 5.95
	943134501590S	Denon Cap, Elect(200v/100uf),105'c Schematic Location: C6004	Y	Ships in 6 days 6.95
	00MOA47602520	Marantz Cap, Elect(25v/47uf),105'c Schematic Location: C6013		Ships in 6 days 5.95
	963134010200S	Denon Cap, Elect(400v/100uf),18x40l,nha Schematic Location: C6004		No
	00D9430175108	Denon Cap, Elect(50v/10uf),105'c Schematic Location: C6008		Ships in 6 days 5.95
	963134010220S-99	Denon Cap, Elect(6.3v/5600uf) Schematic Location: C6018		In Stock In stock 6.95
	963419100930S-99	Denon Clip , Wifi Antenna Schematic Location: M14		No
Coil	943115100310S	Denon Coil , Speaker ( 0.5Uh ) Schematic Location: L5101		Ships in 6 days 5.95
	943611501140S	Denon Cord , Power (13A/125v,usa,inlet) Schematic Location: 2	Y	In Stock In stock 23.95
Cushion	00D9630214607	Denon Cushion Foot Schematic Location: M5		Ships in 6 days 5.95
Circuit Board	9U6391033300S	Denon Digital Pcb Assy (Dra800he3) Schematic Location: P7		No
	943671101000D	Denon Encoder(16),ec16b12saad4zzz,12pulse,12detent Schematic Location: VR102	Y	In Stock In stock 5.95
	943663001560S	Marantz Encoder(16),ec16b24t01d4z01,24pulse,24detent Schematic Location: VR101		No
	943222500440S	Denon F.e.t , 2N7002ka, N-ch, Sot-23, Kec Schematic Location: Q6002	Y	In Stock In stock 5.95
Antenna	943116100170D	Denon Fm 1 Pole Ant ( Ul Type ) Schematic Location: 5-7	Y	In Stock In stock 5.95
Leg, Foot, Caster	943407100020D	Denon Foot Schematic Location: M4		No
Panel	943402107810S	Denon Front & Sub Panel Ass'y Schematic Location: F1		Ships in 6 days 57.95
Knob, Dial, Button	943412101620S	Denon Function Knob Ass'y Schematic Location: F5		Ships in 6 days 46.83
Fuse, Thermal Fuse, Breaker	0520100170060	Denon Fuse(218series, 250V/5a) Schematic Location: F6002	Y	In Stock In stock 5.95
Fuse, Thermal Fuse, Breaker	943652500510D	Denon Fuse(932series, 250V/1.25a) Schematic Location: F3003	Y	In Stock In stock 5.95
Fuse, Thermal Fuse, Breaker	943652500600S	Denon Fuse(932series, 250V/200ma) Schematic Location: F1001	Y	In Stock In stock 5.95
Fuse, Thermal Fuse, Breaker	963652010500S	Denon Fuse(s506 Series, 250V,1.6a) Schematic Location: F6001	Y	In Stock In stock 5.95
Fuse, Thermal Fuse, Breaker	963652010510S	Denon Fuse(s506 Series, 250V,2a) Schematic Location: F6001	Y	In Stock In stock 5.95
Holder	963419100920S	Denon Holder , Wifi Antenna Schematic Location: M16	Y	In Stock In stock 5.95
IC	963236102290S	Denon I.c , 2Ch Dac(32bit,384khz,tssop-20p) Schematic Location: IC760		Ships in 6 days 24.95
IC	943239101840S	Denon I.c , 8Ch Premium Dac(qfn-48p) Schematic Location: IC791		Ships in 6 days 29.95
	23581010150AS-99	Denon I.c , 8Ch Volume(ssop-32p) Schematic Location: IC822		In Stock In stock 13.95
IC	236810086505S	Denon I.c , Adc(96khz 24-Bit) Schematic Location: IC764		Ships in 6 days 5.95
IC	943239102280S	Denon I.c , Dc-dc Step Down 3A (Sot-23) Schematic Location: IC741		Ships in 6 days 5.95
Transformer	23681014050AS	Denon I.c , Dir/dit(with Adc,lqfp-48p) Schematic Location: IC761	Y	In Stock In stock 10.95
IC	943235100860S	Denon I.c , Dual Analog Switch (Ssop-32p) Schematic Location: IC821	Y	Ships in 6 days 11.95
IC	943232100380S	Denon I.c , Dual Opamp(sop-8p) Schematic Location: IC792	Y	Ships in 6 days 5.95
IC	943232100540S	Denon I.c , Dual Opamp(sop-8p) Schematic Location: IC501		Ships in 6 days 5.95

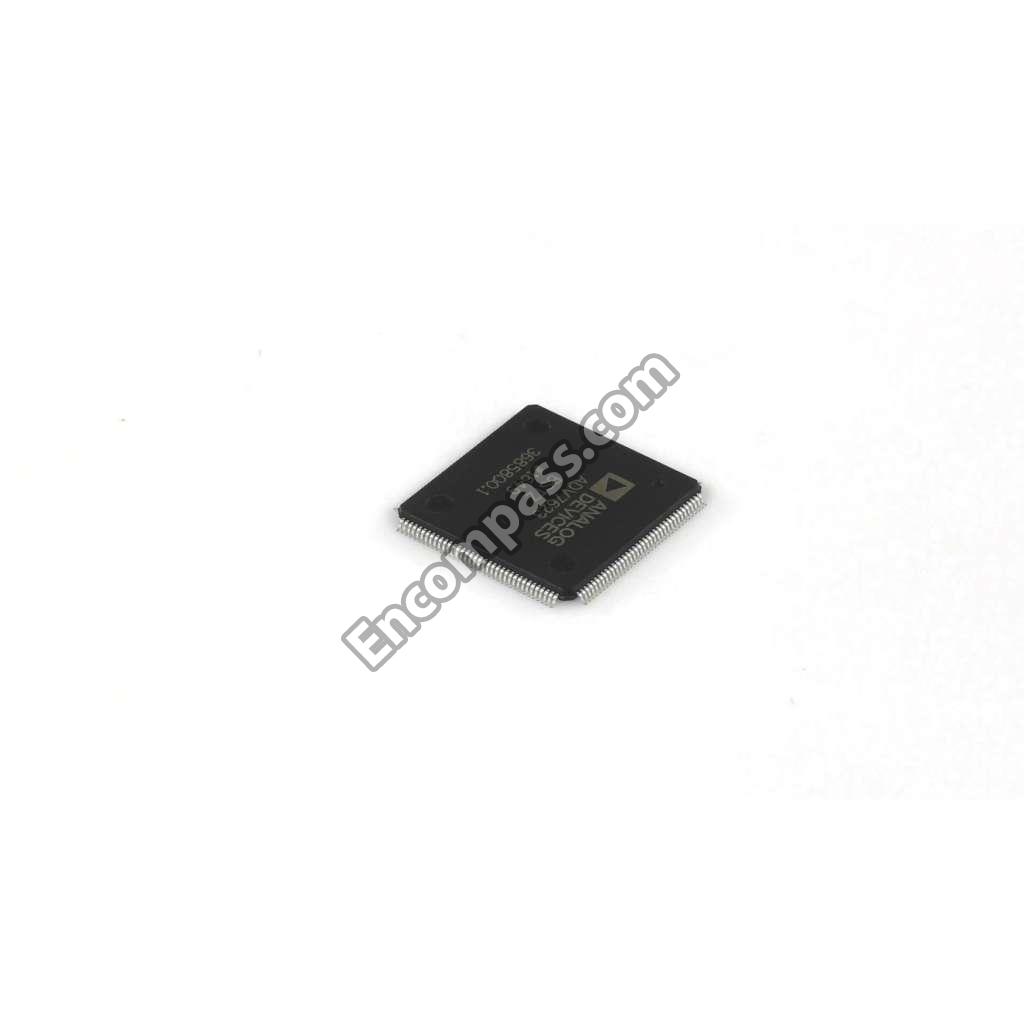

IC	23681050460AS	Denon I.c , Hdmi 2.0 Transceiver (Hqfp-144p) Schematic Location: IC721	Y	In Stock In stock 34.95
IC	23681050360AS	Denon I.c , Hdmi 2.0 Tx+scaler Schematic Location: IC701		Ships in 6 days 57.95
	943236012460S	Denon I.c , Hdmi Transceiver (Lqfp-144p) Schematic Location: IC731		Ships in 6 days 51.95
	23381001250AS	Denon I.c , Hex Inverters(tssop-14p) Schematic Location: IC951		Ships in 6 days 5.95
IC	943239101090S	Denon I.c , High Side Switch (Tssop-b8) Schematic Location: IC814		Ships in 6 days 5.95
IC	23671011050AS	Denon I.c , Ipod Authentication From D&m Schematic Location: IC815		Ships in 6 days 5.95
IC	943243104270S	Denon I.c , Main Mcu (Dra800hbke3)see Procedure After Replacing The U-com, Etc. Schematic Location: IC751		Ships in 6 days 41.95
IC	23381001350AS	Denon I.c , Mux/demux (Tssop-16p) Schematic Location: IC733	Y	Ships in 6 days 5.95
IC	963239002150S	Denon I.c , Octal Buffer/driver Schematic Location: IC722		Ships in 6 days 5.95
IC	943231102160S	Denon I.c , Off-line Power Switch Schematic Location: IC601	Y	In Stock In stock 17.95
	00MHC10102090	Marantz I.c , Op Amp (Jrc) Schematic Location: IC831	Y	Ships in 6 days 5.95
IC	943232100560S	Denon I.c , Opamp(ssop-8p) Schematic Location: IC762		Ships in 6 days 5.95
IC	943248105270S	Denon I.c , Osd1 Serial Flash (Dra800hbke3)see Procedure After Replacing The U-com, Etc. Schematic Location: IC732		Ships in 6 days 5.95
IC	943248105300S	Denon I.c , Osd2 Serial Flash (Dra800hbke3/bke2)see Procedure After Replacing The U-com, Etc. Schematic Location: IC723		Ships in 6 days 5.95
Coupler	943239101740S	Denon I.c , Photo Coupler Schematic Location: IC602	Y	In Stock In stock 5.95
IC	23681011960AS	Denon I.c , Pld(fbga,256p)see Procedure After Replacing The U-com, Etc. Schematic Location: IC771		Ships in 6 days 29.95
IC	943232100370S	Denon I.c , Regulator(+12v,to220) Schematic Location: IC301	Y	Ships in 14 days 5.95
Regulator	943231010390S	Denon I.c , Regulator(+5v,t0220is) Schematic Location: IC305	Y	Ships in 1 days 5.95
IC	943231102170S	Denon I.c , Regulator(3.3v , Ssop5) Schematic Location: IC766		Ships in 6 days 5.95
IC	963231102320S	Denon I.c , Regulator(adjustable/ldo/sot89-5/1a) Schematic Location: IC831		Ships in 6 days 5.95
IC	943233102030S	Denon I.c , Shift/store Register(soic-16p) Schematic Location: IC752		Ships in 6 days 5.95
IC	212050010508S	Denon I.c , Shunt Regulator(to-92) Schematic Location: IC603	Y	In Stock In stock 5.95
IC	943239100730S	Denon I.c , System Reset(4.8v , Sot-25a) Schematic Location: IC604		No
IC	943248105290S	Denon I.c, Dsp Serial Flash (Dra800hbke3/bke2)see Procedure After Replacing The U-com, Etc. Schematic Location: IC782		Ships in 6 days 5.95
Bracket, Flange, Blade	943643102920S-99	Denon Jack, Hdmi(type-a, Smt-19p, With Flange) Schematic Location: JK701		No
Jack	943643102430S	Denon Jack, Rj-45 W/transformer Schematic Location: JK811		Ships in 6 days 11.95
Jack	943643101590S	Denon Jack, Usb Straight(black 1.5A) Schematic Location: JK101		Ships in 6 days 5.95
Knob, Dial, Button	943412101790S	Denon Knob , Rotary Schematic Location: F12	Y	Ships in 6 days 6.95
Knob, Dial, Button	943412101540S	Denon Knob , Select Schematic Location: F5	Y	In Stock In stock 7.95
Knob, Dial, Button	943412101550S	Denon Knob , Volume Schematic Location: F3	Y	In Stock In stock 7.95
	943176010090S-99	Denon L.e.d,(green/red 5Pi) Schematic Location: D1012		Ships in 6 days 5.95
	943423100630S	Denon Lens , Power Led Schematic Location: F9		Ships in 6 days 5.95
Filter	963111010230S	Denon Line Filter, 27Mh Schematic Location: LF602	Y	No 9.95

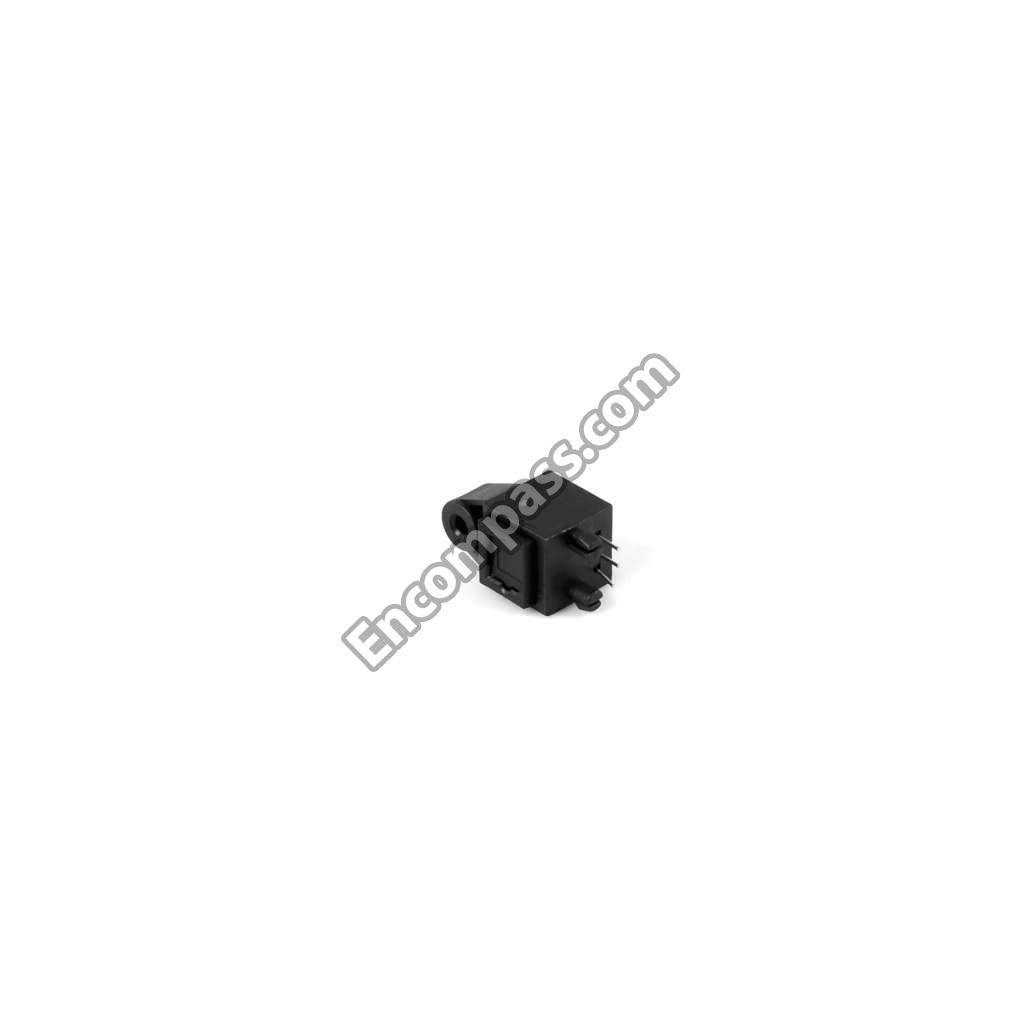

Jack	943262100150S	Denon Module , Optical(rx 16Mhz) Schematic Location: JK761	Y	In Stock In stock 5.95
Module	9R1891004300S	Denon Network Module Assy(aios4.0v)_fy20see Procedure After Replacing The U-com, Etc. Schematic Location: P8	Y	Ships in 6 days 158.95
Noise	943213500150S	Denon Npn, To-92, Low Noise, Hfe:300-600, Failchild Schematic Location: Q5103	Y	In Stock In stock 5.95
Plate	943446100910S	Denon Plate , Select Schematic Location: F6		Ships in 6 days 5.95
Plate	943446100920S	Denon Plate , Volume Schematic Location: F4		In Stock In stock 5.95
Noise	943211500150S	Denon Pnp, To-92, Low Noise, Hfe:300-600, Failchild Schematic Location: Q5101	Y	In Stock In stock 5.95
	943252101070S	Denon Ptc Themistors, Chip(115'c) Schematic Location: R5126	Y	In Stock In stock 5.95
Guide	54111171800AD	Denon Quick Start Guide (Dra800he3) Schematic Location: 6-5		Ships in 6 days 5.95
Relay	943682100610S	Denon Relay,981-2a-12ds-sp7,dc12v,2c1p Schematic Location: RY562	Y	In Stock In stock 10.95
Relay	943682100620S	Denon Relay,hf115f/012-2zs4,dc12v,2c2p Schematic Location: RY586		No
Relay	943682100660S	Denon Relay,hf36fd/5-hlt,dc5v,1c1p Schematic Location: RY601		In Stock In stock 9.95
	30701027200AD	Denon Remocon Ass'y (Rc-1235) Dra800h Schematic Location: 7	Y	No
	943679100020S	Denon Res , Semi Fixed (1K , B Curve) Schematic Location: VR510		Ships in 6 days 5.95
	943129501040S	Marantz Res, Cement(5w, 0.01Ohm, 5%),Small Size Schematic Location: R5827		No
	943129501170S	Denon Res, Cement(5w, 0.22Ohm X2)_xinzu Schematic Location: R5135	Y	Ships in 6 days 5.95
Switch	00D9430004402	Denon Sw , Tact Schematic Location: SW101		Ships in 6 days 5.95
Transistor	214050011705S	Denon T.r , Bias Schematic Location: Q5104	Y	In Stock In stock 6.95
	00D2690184907	Denon T.r , Chip , Sot-23 Schematic Location: Q1007		Ships in 6 days 5.95
	00D2690192902	Denon T.r , Chip , Sot-23 Schematic Location: Q1002	Y	Ships in 6 days 5.95
	90M-HT200440R	Marantz T.r , Power Schematic Location: Q5106	Y	Ships in 6 days 8.95
	90M-HT400490R	Marantz T.r , Power Schematic Location: Q5105	Y	In Stock In stock 10.95
Transistor	943214500020S	Denon T.r, 2Sc3052 Schematic Location: Q1003		No
	963212500030S	Denon T.r, Isa1530ac1 Schematic Location: Q1005		Ships in 6 days 5.95
	21685002450AS-99	Denon T.r, Krc105s, Npn, Sot-23, Kec Schematic Location: Q5601		Ships in 6 days 5.95
	943219006820S	Denon T.r, Ktc1027y, Npn Schematic Location: Q1001		Ships in 6 days 5.95
Transistor	943214500410S	Denon Tr, Mmbta42, Npn, Sot-23, Kec Schematic Location: Q5108	Y	In Stock In stock 5.95
	943212500350S	Denon Tr, Mmbta92, Pnp, Sot-23, Kec Schematic Location: Q5107	Y	Ships in 6 days 5.95
Transformer	943101103820S	Denon Trans , Power Dra800h/e3, (85.8X69) Schematic Location: P14		Ships in 6 days 71.95
Switch	943102100720S	Denon Trans , Switching Schematic Location: T6001		In Stock In stock 11.95
Screw	943183100680S	Denon Tuner , Fm(screw : F Type), Am , Si4730-d60 Schematic Location: TU800		Ships in 6 days 34.95
	943172100150S	Denon V.f.d (Futaba, 18-Bt-02gink) Schematic Location: FL101		Ships in 6 days 26.95
Knob, Dial, Button	943412101630S	Denon Volume Knob Ass'y Schematic Location: F3		No
	943416102010S	Denon Widnow , Vfd Schematic Location: F2		Ships in 6 days 19.95
	943141101440S	Denon X-tal, Smd(28.63636mhz/7pf, Fa-238, 3.2X2.5) Schematic Location: X7301		Ships in 6 days 5.95
